ISUZU Chassis Two Person Crew 22 Meters Aerial Work Platform Truck

  • 1
  • 2

Brand Name : KaiFan

Model Number : KFM5075JGK –GKS-22Q

Certification : IQNET,ISO

Place of Origin : China

MOQ : 1 unit

Price : Factory price, negotiable

Payment Terms : T/T, L/C, D/A, D/P, Western Union, MoneyGram

Supply Ability : 500 unit/year

Delivery Time : 3 months

Packaging Details : Exporting standard package or customized packing

Chassis : ISUZU

Altitude : 0-1000 m

Temperature : -25℃--+45℃

Working height : 22 meters

Max. Speed : 90 km/h

Working radius : 13400mm

Crew : 2

Boom type : Four section telescopic boom

Product name : 22m aerial work platform truck

Contact Now

Four-section telescopic boom ISUZU chassis 4x2 drive 22M Aerial Working Platform 90km/h speed 200kg load

A,Working Range

KFM5075JGK Telescopic Boom Aerial Working Platform can be applied in various conditions for aerial working, such as urban road, suburban road, highway, airport, bridges and culverts and so on. The structure type is telescopic boom and the lifting boom is flexible, convenience and performance with the negative point, more suitable for narrow site conditions or other special operations.

B,Main Parameters

Bulletin No. KFM5075JGK
Type GKS-22Q
External dimensions(mm) 7150×2045×3550
Structure type Four-section telescopic boom
Working Cage Internal size(mm) 1000×650×1100
Rated loading(kg) 200(or 2 persons)
Max. Working height(mm) 22000
Max. Height from ground(mm) 20300
Rotation angle(º) Left 90 º, right 90 º
Max. Working radius(mm) 13400
Working radius when doing the highest height(mm) 4190

Working Boom

 Lifting angle(º) -12~80
Out rate speed(mm/sec) 12360/70
Ret rate speed(mm/sec) 12360/70
Boom rack rotation angle(º) 360
Boom rack rotation speed(r/min) 1.0
Outrigger

)

Vertical span(mm)

 4000
Horizontal span(mm) 4000
Traveling of vertical outrigger(mm) 550
Adjustment Single adjustable

C,Chassis Introduction

Traveling

Performance

Parameters

 Chassis model ISUZU NKR77LLPACJAY (EN III)
Persons 2
Axle base (mm) 3360
Wheel base (front/rear)(mm) 1504/1425
Driving mode 4×2
Front suspension(mm) 1015
Rear suspension(mm) 2100
Approaching angle(º) 24
Departure angle(º) 12
Max. Grade ability(%) 28
Min. Turning diameter(mm) 13600
Min. Ground clearance(mm) 190
Engine Engine model 4KH1-TC
Rated power(kw/r/min) 96/3400
Torque(N,m/r/min) 280/1700

　

Max. Speed(km/h)

 90
Gas consumption per one hundred miles(diesel oil) (L) 12
Specification of the tire 7.50-15,7.50R15,7.00-16,7.00R16
The whole weight(kg) 7170
Max. Weight with whole loading(kg) 7300

D,Vehicle Information

  1. Manual Instruction
  2. Operation manual of chassis
  3. Guarantee of chassis
  4. Certification of quality of the vehicle
  5. Maintenance Manual (Operation instruction)
  6. Operating safety certification

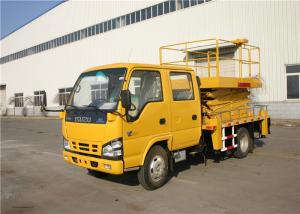

ISUZU Chassis Two Person Crew 22 Meters Aerial Work Platform Truck
